M8 Softail Rear Brake Fix

M8 Softail Rear Brake Fix

If you’re running factory mid controls on an M8 Softail, you already know the stock rear brake pedal feel and performance leave a lot to be desired.

Square One Performance developed the M8 Softail Brake Fix to solve that problem.

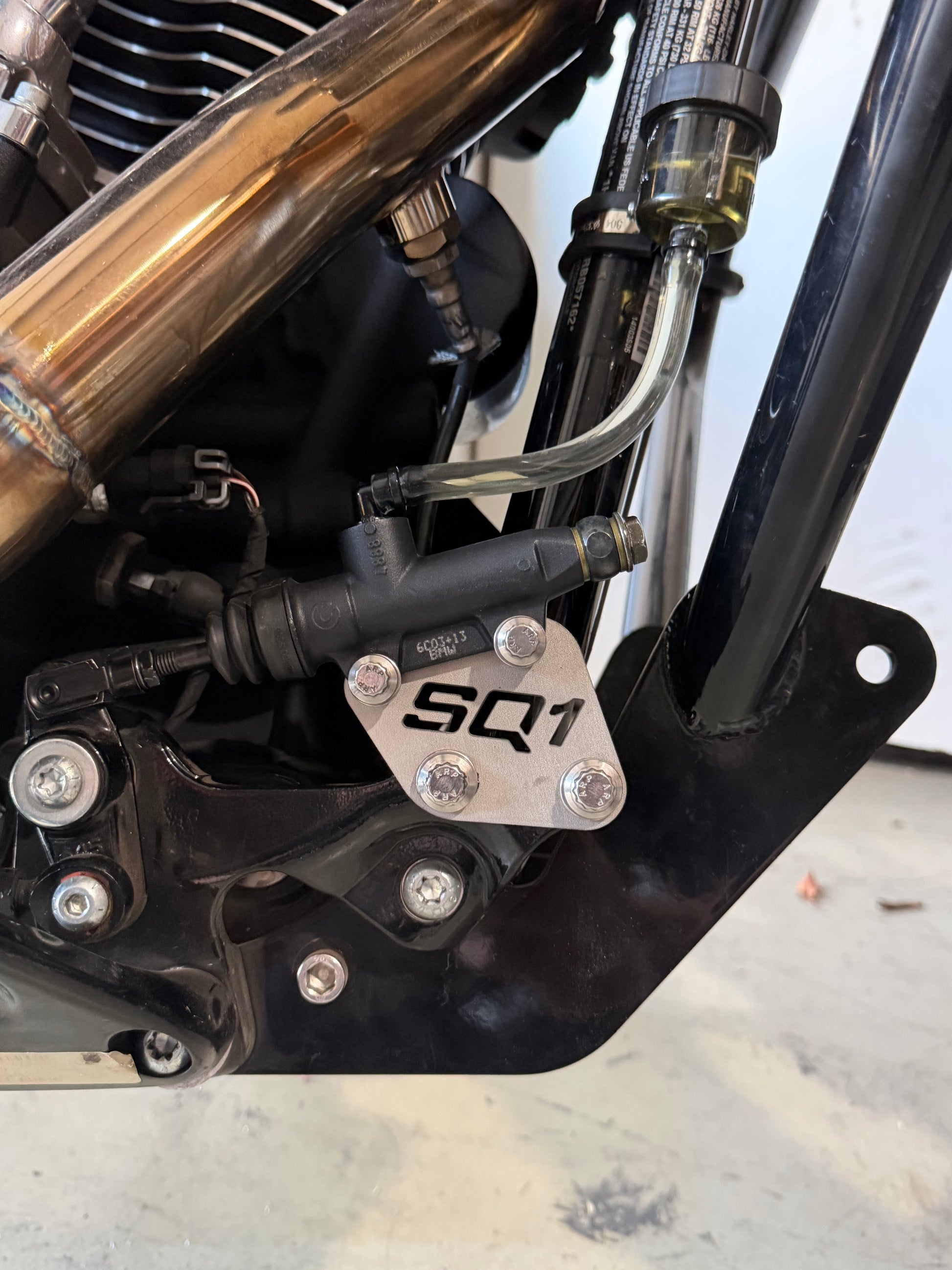

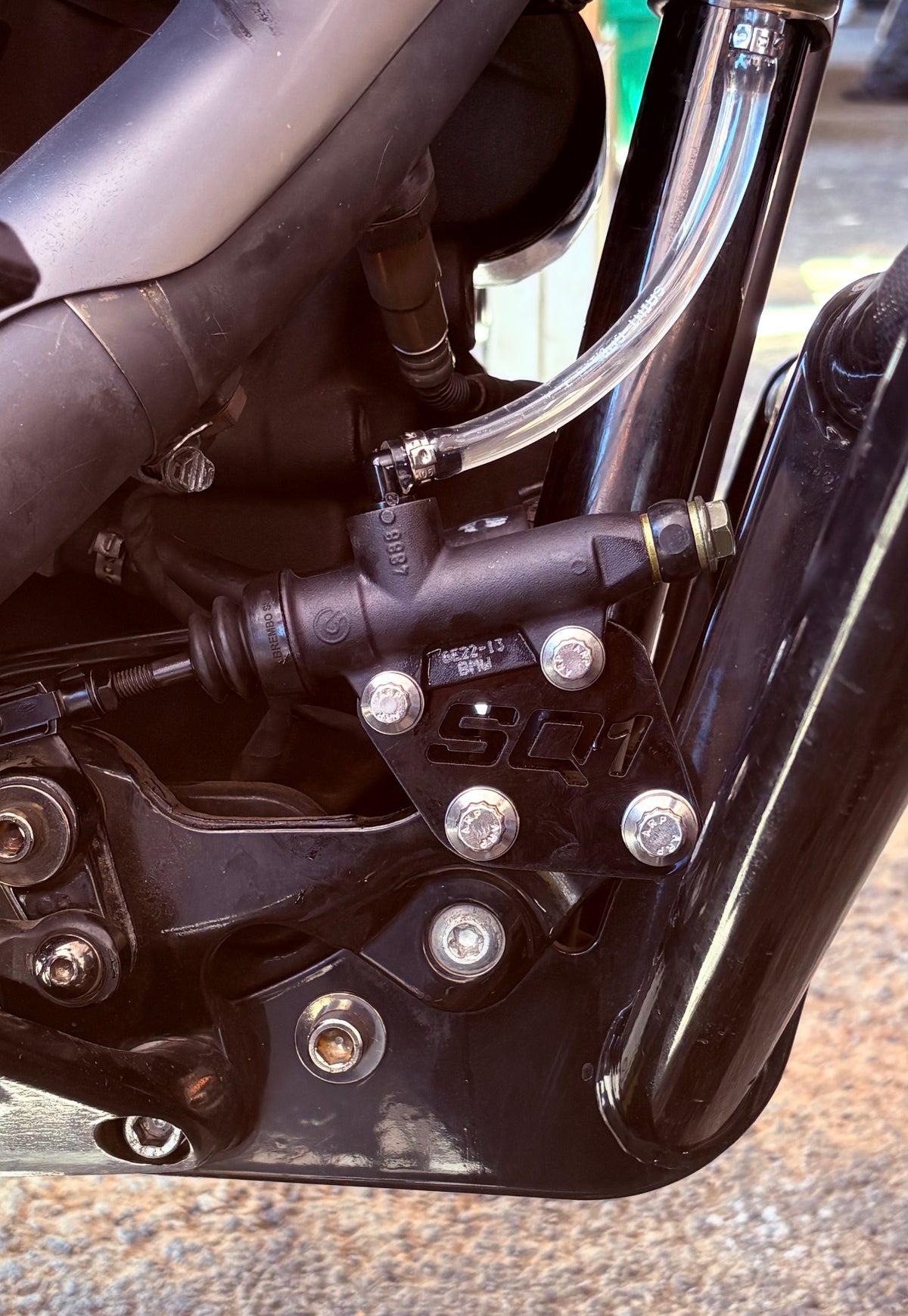

By upgrading to a Brembo 13mm master cylinder with a remote reservoir and correcting the angle between the brake master and pivot block, we’ve created a much more direct push. This improved geometry transfers pedal force more efficiently through the Brembo master cylinder, resulting in a firmer, more responsive brake pedal with improved feel and control.

     FULL KIT FEATURES

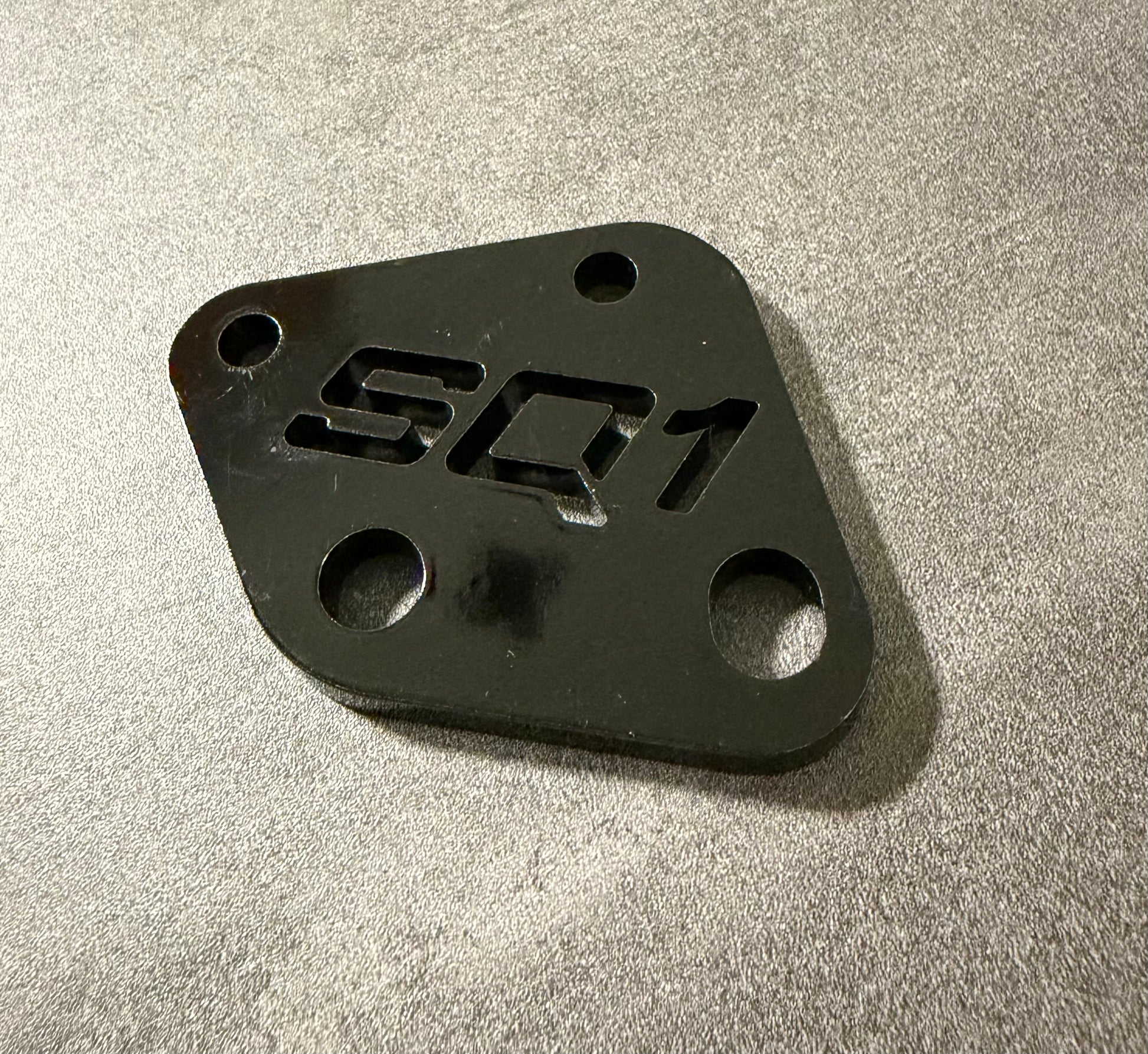

• SQ1 adapter plate
• ARP hardware
• Brembo 13mm master cylinder*
• Brembo remote brake fluid reservoir
• Tygon 2375 ultra chemical resistance hose
• Oetiker hose clamps
• Frame strap reservoir mount
• Banjo bolt and washers

*Bracket and Hardware kit includes everything the full kit does except for the master cylinder.

The factory brake linkage will work with this setup. However, we recommend using the GBD adjustable linkage so you can fine-tune the brake pedal height to your personal preference.

Better geometry. Better pedal feel. Better braking.

The SQ1 M8 Softail Brake Fix — because the factory setup can be better.

 Patent pending

NOTE: TAMPERING WITH, MODIFYING THE BRAKING SYSTEM MAY SIGNIFICANTLY REDUCE VEHICLE BRAKING PERFORMANCE AND CREATE A SERIOUS SAFETY HAZARD. ANY MODIFICATION TO YOUR BRAKING SYSTEM, INCLUDING THE INSTALLATION OR USE OF THE SOFTAIL BRAKE FIX IS PERFORMED SOLELY AT YOUR OWN RISK.

BY INSTALLING OR USING THIS PRODUCT, YOU ACKNOWLEDGE THAT YOU UNDERSTAND THE POTENTIAL RISKS INVOLVED. WE ASSUME NO LIABILITY FOR ANY DAMAGE, INJURY, LOSS, OR CONSEQUENCES RESULTING FROM MODIFYING THE BRAKING SYSTEM OR ANY SAFETY COMPONENTS.

PLEASE NOTE THAT MODIFYING THE BRAKING SYSTEM VOIDS ANY WARRANTIES, INCLUDING MANUFACTURER OR AFTERMARKET COVERAGE.

ALWAYS CONSULT A QUALIFIED PROFESSIONAL BEFORE PERFORMING ANY BRAKE SYSTEM MODIFICATIONS.
